PicoDrain Cell™
Drainage Cell
Modular drainage cell for efficient drainage and water detention.
Material
HDPE/PP
Key Performance
High-Void • Detention
Applications
Green Roofs • Podiums
Product Definition

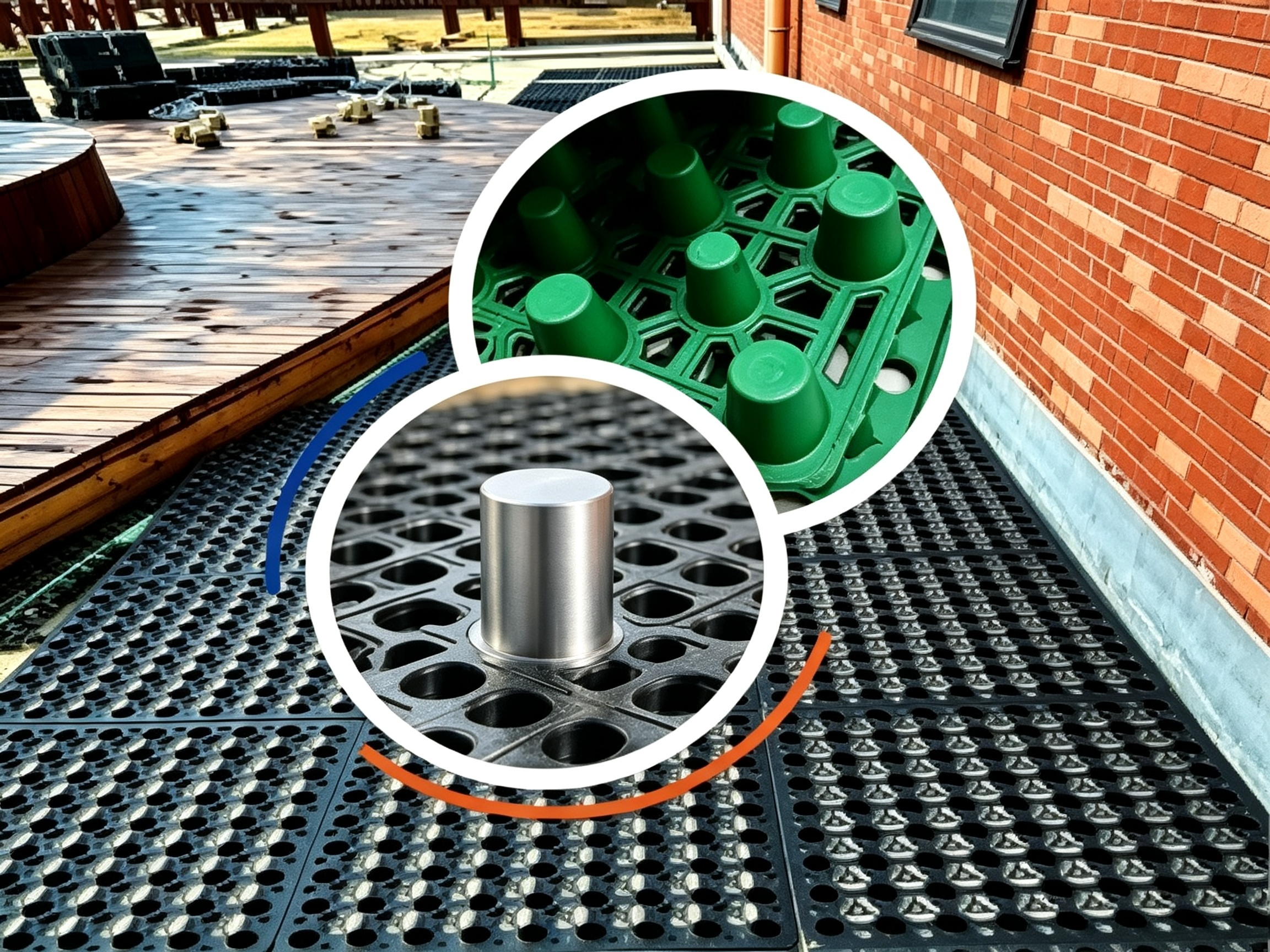

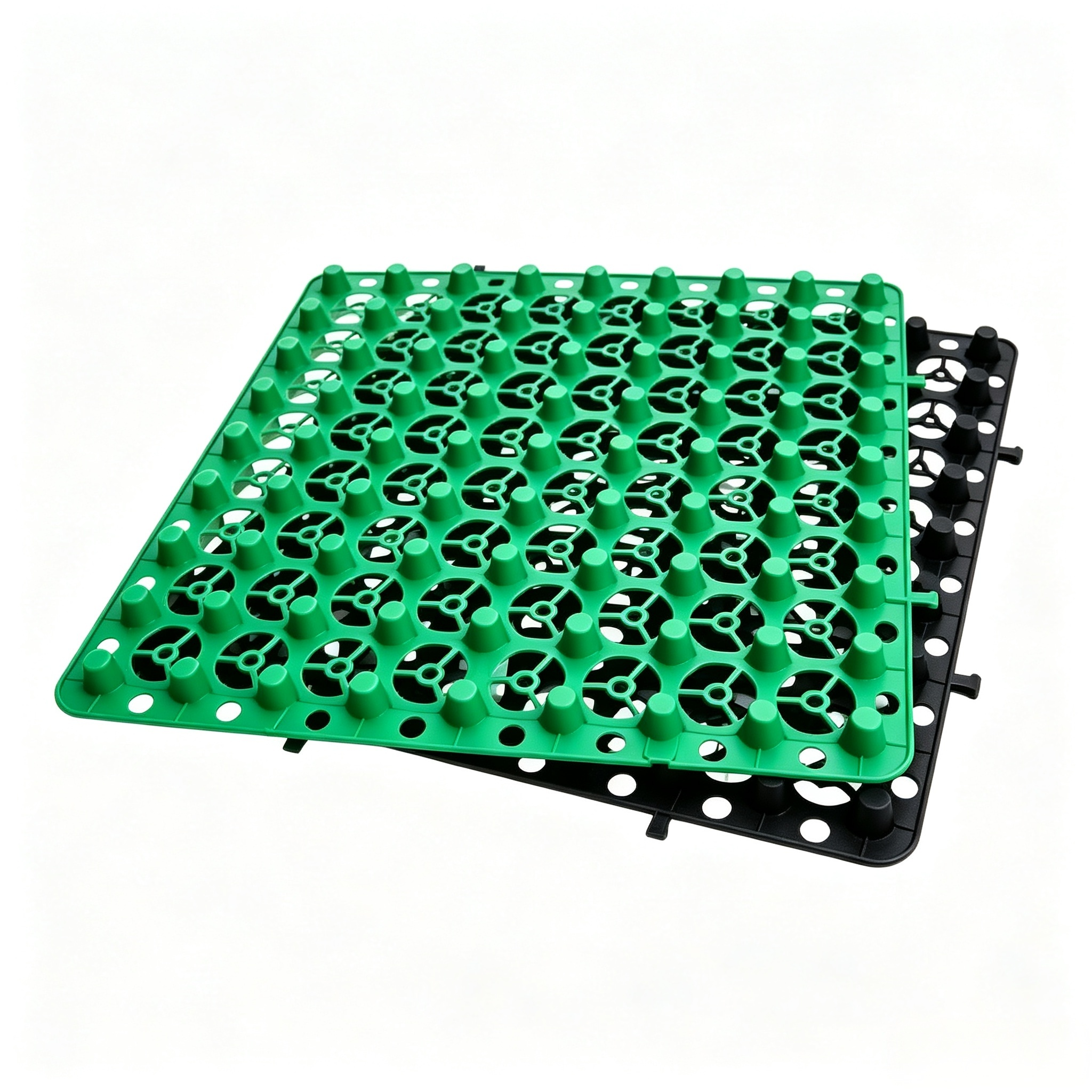

PicoDrain Cell™ is a modular drainage system manufactured from HDPE or PP.
Its high-void cellular structure collects and conveys water while providing structural support beneath landscaped and paved surfaces.
How It Works
Water Collection
Water passes through the soil and geotextile filter layer.
Filtration
The geotextile filters soil particles before water enters the cells.
Temporary Detention
The high-void structure temporarily holds excess water.
Controlled Drainage
Collected water flows through interconnected cells towards the outlet.
Key Benefits
High-Void Drainage
Provides open space for efficient water collection and flow.
Temporary Detention
Helps manage excess water and reduce peak runoff rates.
Load Resistance
Supports overlying soil, landscaping and surface traffic loads.
Modular Installation
Lightweight interlocking units allow fast and easy placement.
Reduced Aggregate Use
Provides an efficient alternative to traditional gravel drainage layers.
Applications
Designed for efficient drainage and water management in landscaped and paved areas.
Green Roofs
Drainage and temporary water detention beneath roof landscaping.
Podium Decks
Subsurface drainage beneath landscaped podium and plaza areas.
Sports Fields
Drainage beneath natural and artificial turf playing surfaces.
Stormwater Management
Temporary detention and controlled drainage in urban projects.
Need a Product Quote or Technical Support?
Contact our team for product information, project-specific recommendations and quotations.
