Pico3DDrain™
3D Drainage Mat
Flexible 3D drainage mat for multidirectional water flow.
Material
Random Fibre Matrix
Key Performance
Multidirectional • High Void
Applications
Basements • Landfills
Product Definition
Product Definition

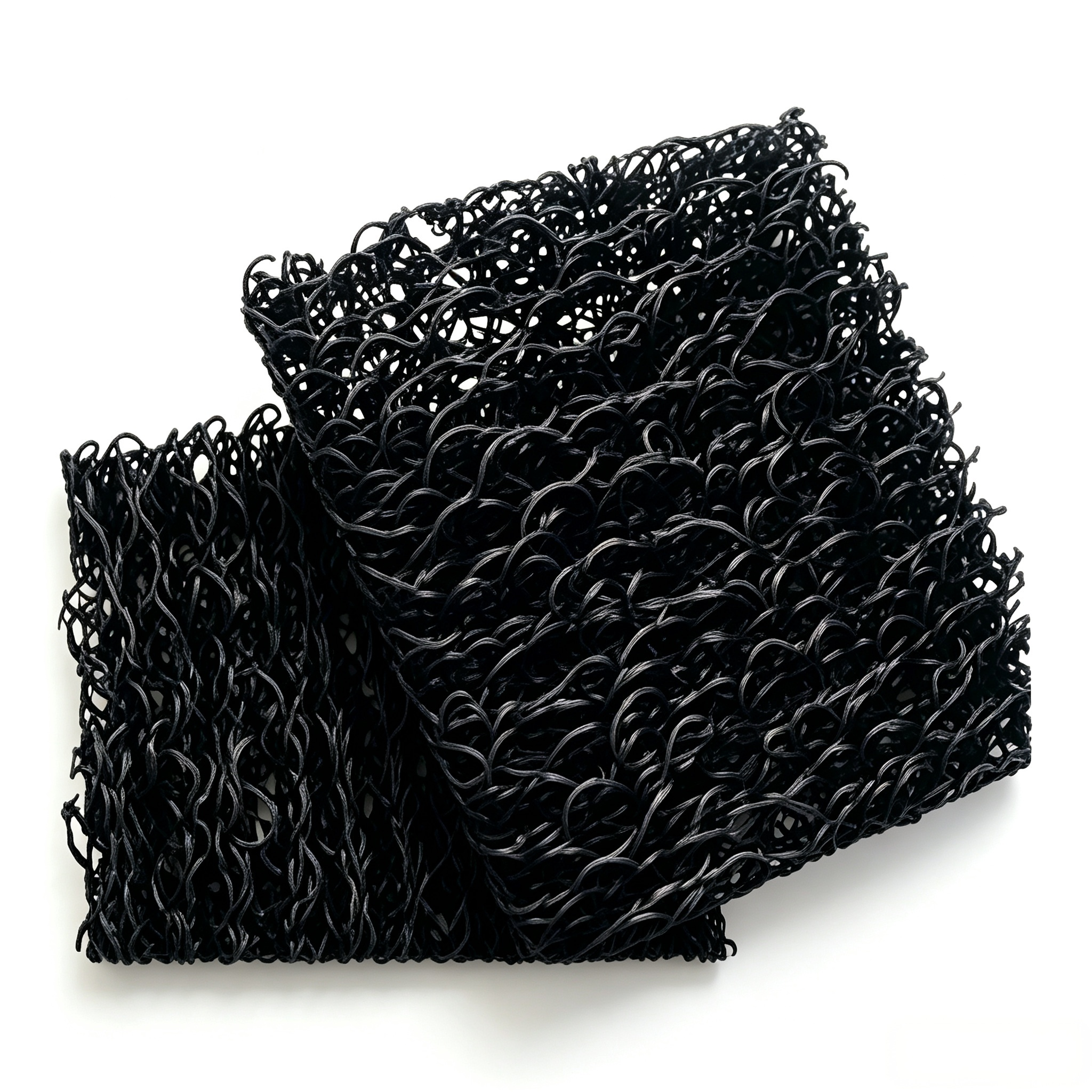

Pico3DDrain™ is a flexible, three-dimensional drainage mat manufactured from randomly arranged polymer fibres bonded at contact points to form a stable porous matrix.
The high void ratio structure (>90%) provides exceptional in-plane drainage capacity in multiple directions, making it ideal for relieving hydrostatic pressure, collecting leachate and managing subsurface water in civil engineering and environmental applications.
How It Works
Water Entry

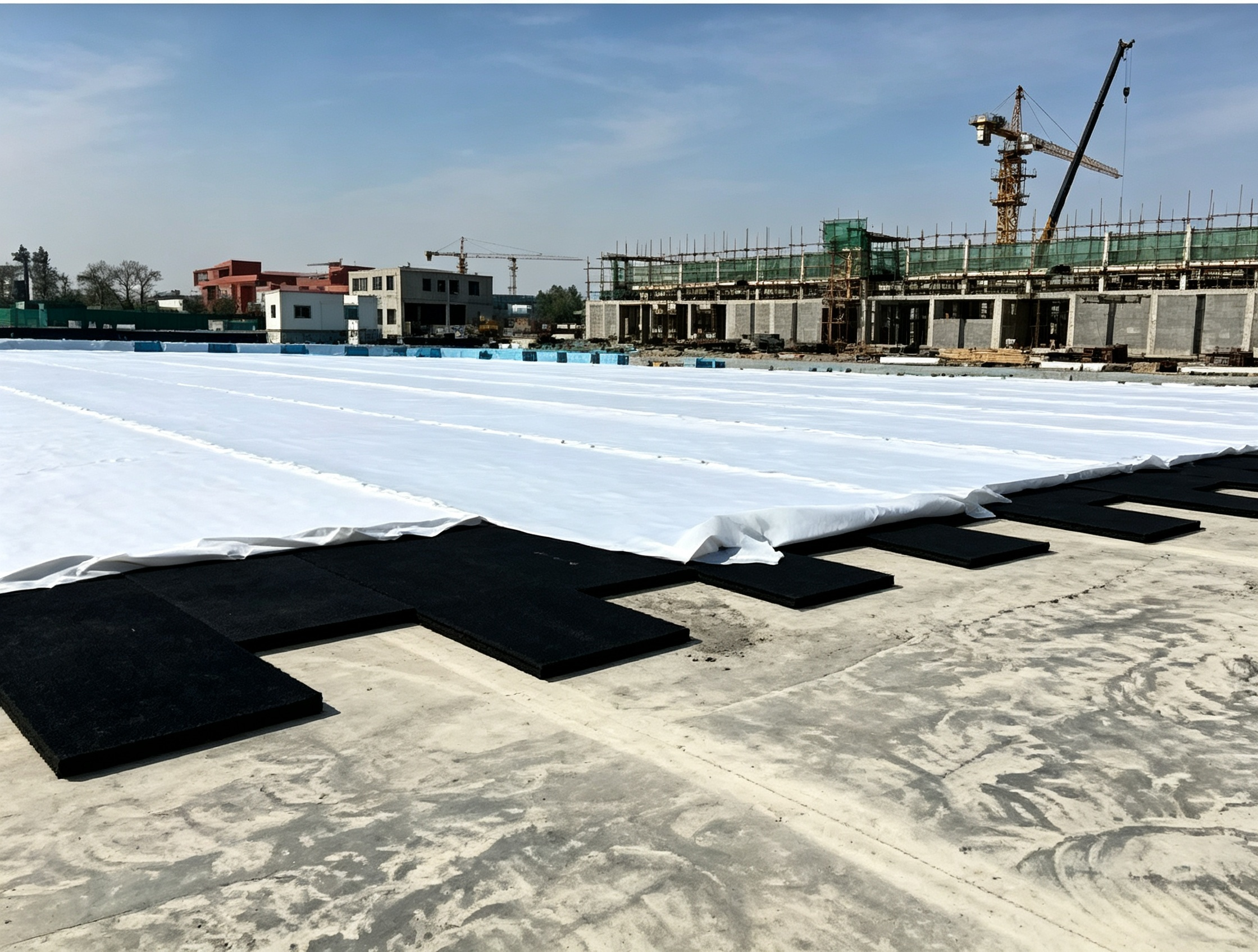

Water enters directly or through a separate geotextile filter layer.
Multidirectional Flow
The random fibre structure allows water to move in multiple directions.
Open Drainage Space
The high-void matrix maintains continuous pathways for water flow.
Discharge
Collected water is conveyed towards the drainage system.
Key Benefits
Multidirectional Drainage
Allows water to flow through interconnected paths.
High Void Ratio
Provides open space for efficient water movement.
Flexible Structure
Conforms to curved, uneven and irregular surfaces.
Lightweight Installation
Flexible rolls allow convenient handling and placement.
Durable Performance
Maintains drainage function in buried applications.
Applications
Ideal for projects requiring high-strength uniaxial reinforcement and long-term soil stability.
Basements & Underground Structures
Drainage and waterproofing protection around below-ground structures.
Landfills
Drainage and gas venting layers within engineered systems.
Green Roofs & Landscapes
Subsurface drainage beneath planted areas.
Sports Fields
Drainage beneath natural and artificial turf.
